โมดูลสวิตช์สัมผัสสำหรับ LED ปรับความสว่างได้ Capacitive touch dimmer LED PWM switch module

โมดูลสวิตช์สัมผัสสำหรับ LED ปรับความสว่างได้ Capacitive touch dimmer LED PWM switch module

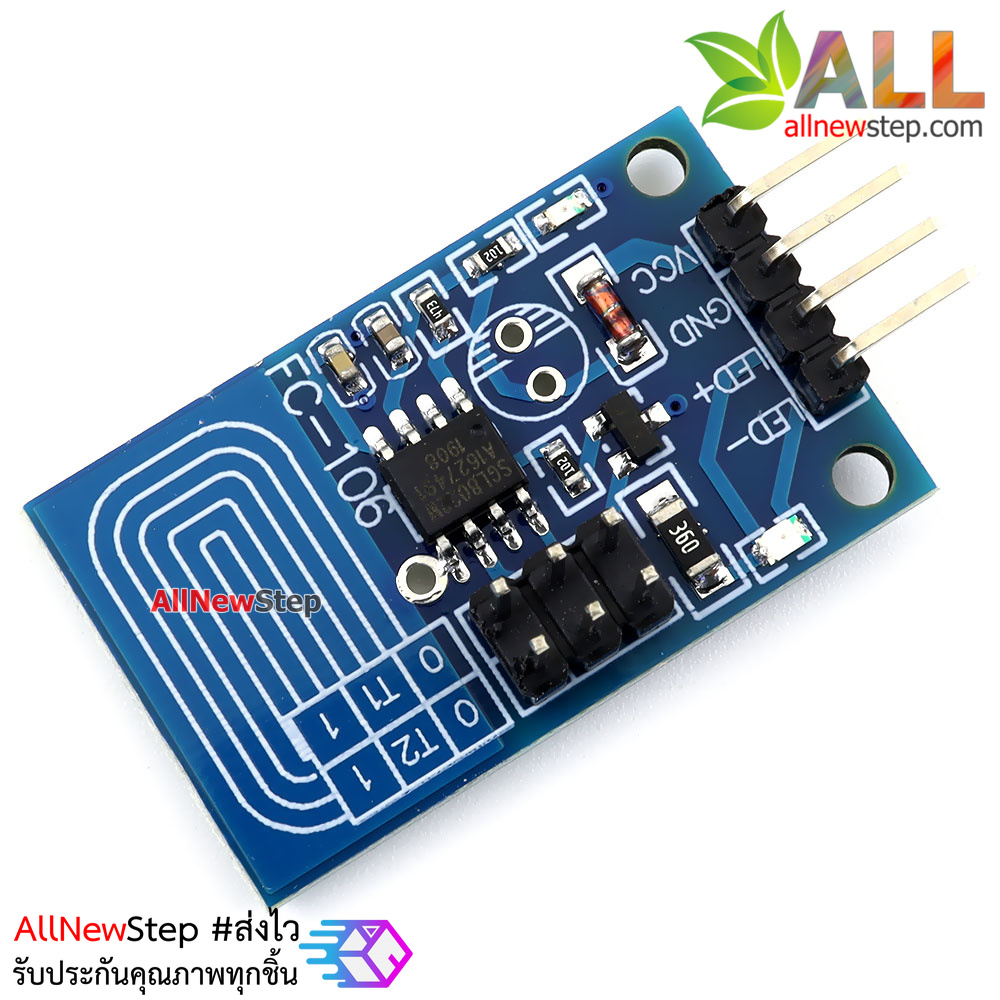

โมดูลสวิตช์สัมผัสสำหรับเปิด/ปิดไฟ LED แบบ Capacitive ที่สามารถปรับความสว่างได้

• เมื่อแตะจะเปิด/ปิดไฟ
• แตะแช่ไว้จะหรี่ไฟ ภายใน 3 วินาทีไฟจะหรี่จนดับ
• มีหน่วยความจำ กำหนดให้จำค่า/ไม่จำค่าการหรี่ไฟได้
• มีช่องสำหรับต่อสายเพื่อเป็นสวิตช์สัมผัสภายนอกบอร์ด
• ปรับความไว้ของสวิตช์สัมผัส ให้เหมาะกับการใช้งานกับวัสดุต่าง ๆ เพิ่มได้
• ใช้ไฟเลี้ยง 2.4-4.5V
• ควบคุมโหลดได้โดยตรง สูงสุดถึง 500mA

การกำหนดโหมดทำงาน โดยเซตที่จัมเปอร์ ดังนี้

• T1 = 1 , T2 = 0 ฟังก์ชั่นไฟค่อย ๆ เปิด/ค่อย ๆ ดับ และจำสถานะการหรี่ไฟครั้งล่าสุดไว้
• T1, T2 ตั้งค่าตำแหน่งอื่น ไฟเปิด/ปิด/หรี่ไฟ ไม่จำค่าหรี่ไฟ

การเพิ่มความไวสวิตช์สัมผัส

ปรับความไวที่ตัวเก็บประจุบนบอร์ด ดังตารางนี้ ให้สามารถวางสวิตช์ไว้หลังวัสดีต่าง ๆ เช่น แก้ว อะคริลิก พลาสติก เซรามิ

Media type	Capacitance type	Capacitance parameters
Touch the metal case directly	Polyester capacitor	333	0.033uF / 25V
Acrylic glass up to 3mm	Polyester capacitor	103	0.01uF / 25V
3-6mm acrylic glass	Polyester capacitor	203	0.02uF / 25V
6-10mm acrylic glass	Polyester capacitor	473	0.047uF / 25V

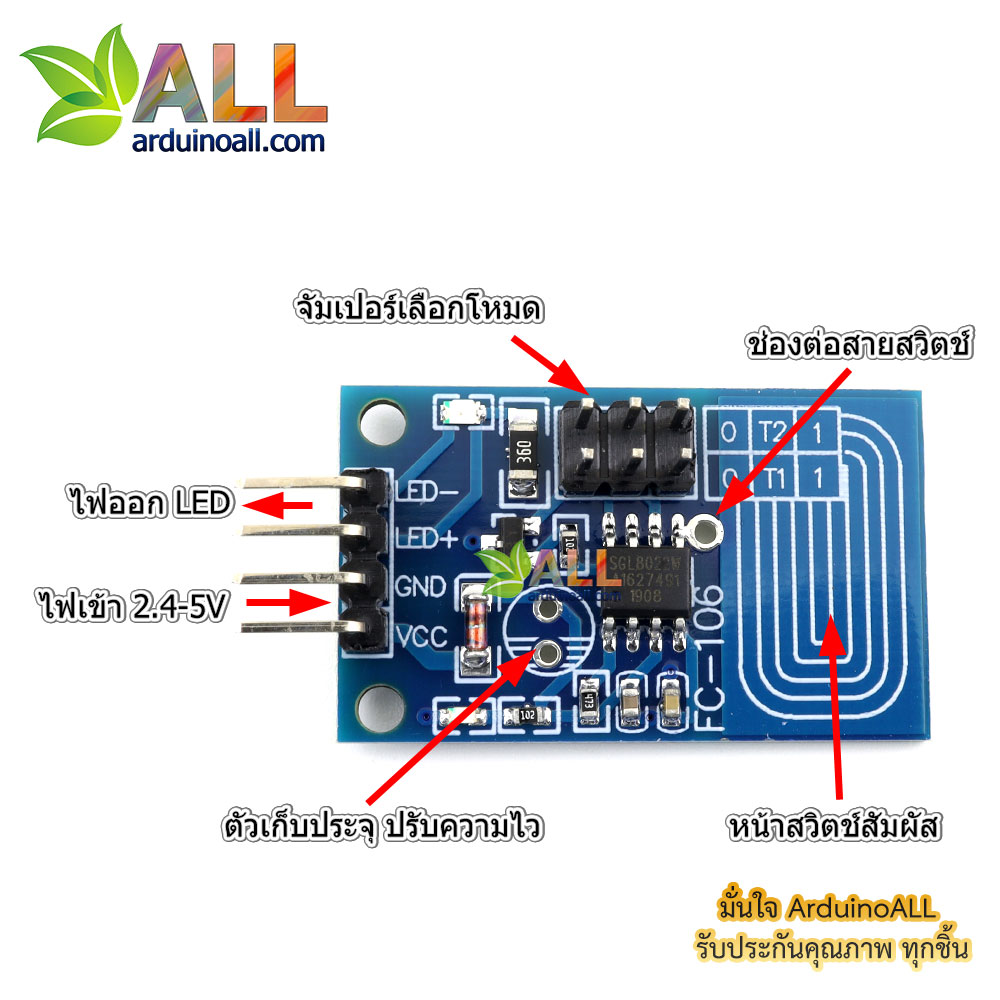

ตำแหน่งขาการใช้งานสวิตช์สัมผัส

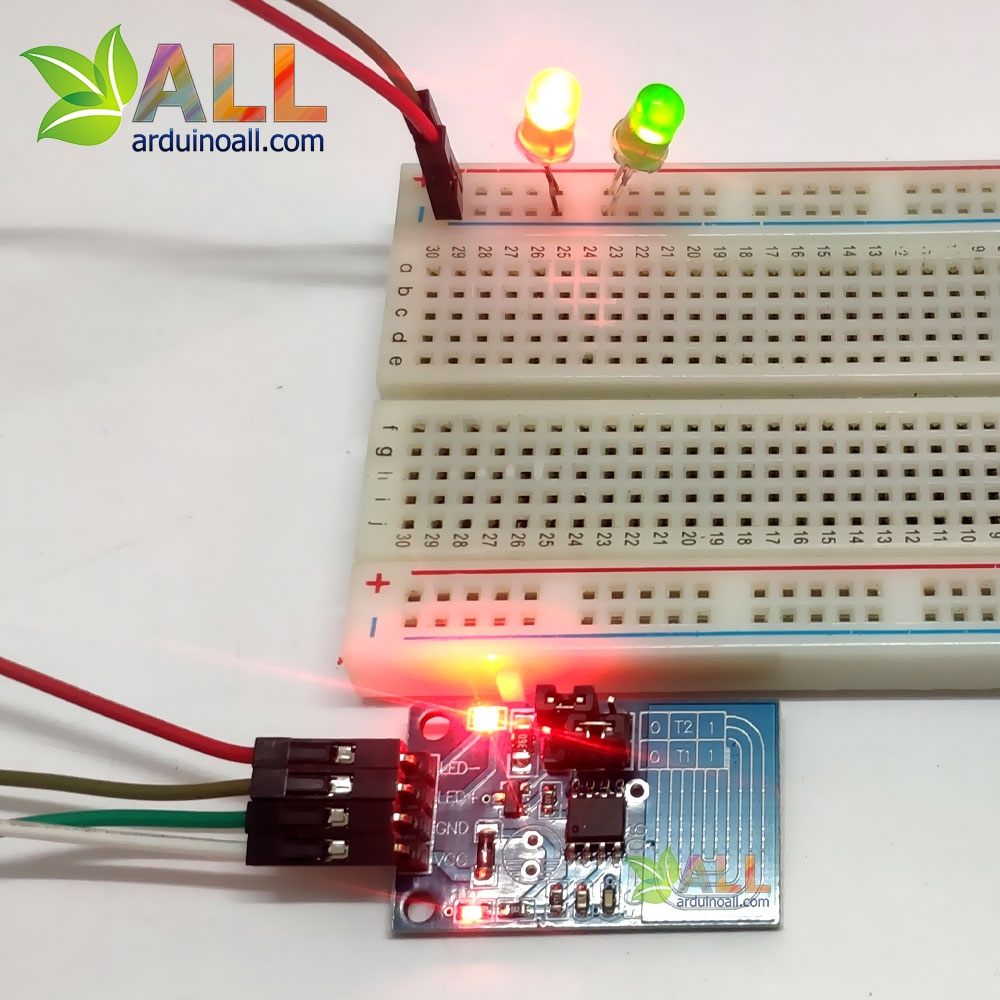

ภาพการต่อใช้งานจริง

Functional characteristics

touch dimming module can realize the touch switch control and brightness adjustment of LED lights. Has the following functional characteristics and advantages:

• The brightness of the light can be adjusted freely according to the needs, the selection range is wide, and the operation is simple and convenient.
• May have medium to realize the touch function (such as glass, acrylic, plastic, ceramic, etc.) isolation protection, the safe.
• Applied voltage range, can be 2.4 ~ 4.5V arbitrarily selected between.
• Application circuit is simple, few peripheral devices, processing convenience, and low cost.
• Good anti-power interference and mobile phone interference characteristics. EFT can reach more than ± 2KV ; in the case of close range and multi-angle mobile phone interference, Touch response sensitivity and reliability are not affected.
• Installation: It is not necessary to directly contact the copper foil, and it can be dimmed through acrylic glass or plastic over 3mm.
• Uses: It can control LED modules, lights and other products. Suitable for indoor table lamp, LED lighting dimming, DIY car light dimming and modification.
• Function: Single-line touch, using capacitive touch principle, sensitive induction is within reach. The default is the LED touch stepless dimming function with switch function, dimming function, and brightness memory dimming. It slowly turns on when the light is turned on, and gradually turns off when the light is turned off, effectively avoiding eye irritation.
• Dimming mode: stepless PWM dimming
• Wiring method: (VCC, GND) in the PCB is the power input, (LED +, LED-) is connected to the positive and negative levels of the LED light (fingerprint) is connected to the touch area, and can also be led out (note that the wiring is not too long, the line is out Later, we recommend using a small copper sheet as the sensing area. The copper sheet area is recommended to be about 2x3cm. The copper foil module on the board sticks the copper foil side to the shell side.

How to use

• When the touch is touched (the touch duration is less than 550ms), the lighting control can be realized. Click and touch once, the light is on; click and touch again, the light is off. The initial brightness of the light is fixed at 90% of the full brightness.
• When you press and hold the touch (touch duration is greater than 550ms), stepless brightness adjustment of the light can be realized. Touch and hold once, the light brightness gradually increases. When you release it, the light brightness stops at the brightness corresponding to the moment of release. If you press and hold for more than 3 seconds, the light brightness will not change after reaching the maximum brightness; light brightness gradually decreases, light levels when released in the release stop time corresponding to the luminance, if a long time over 3 seconds, the light intensity is no longer reaches the minimum brightness variation
  of. This cycle.

Debugging tips

   If a false trigger occurs during debugging or does not trigger, it may be caused by the following reasons:

• Touch line is too thick
• Touch line is too long
• The copper skin is not large enough
• Interference near the switching power supply
• Touch parameter C1 is unreasonable

Technical characteristics

TI touch input corresponds to LED light control output. There are four functions to choose from, the input before the T1 and T2 pins are powered on

State to decide. details as follows:

• T1 = 1 , T2 = 1 corresponding: LED touch stepless dimming without brightness memory
• T1 = 0 , T2 = 1 corresponding: LED touch stepless dimming without brightness memory
• T1 = 1 , T2 = 0 corresponding: LED touch stepless dimming function with brightness memory dimming
• T1 = 0 , T2 = 0 corresponding: LED three-segment dimming function



◆ LED touch stepless dimming function without brightness memory is as follows:

△ The lamp is off when it is initially powered on.

△ When you click and touch (touch duration is less than 550ms ), you can control the light on and off. Click and touch once, the light is on; click and touch again, the light is off. This cycle. When the light is on or off, there is no brightness buffer. And the initial brightness of the light is fixed at 50% of the full brightness .

△ When long touch (touch duration is more than 550ms ), stepless brightness adjustment of light can be realized. When you press and hold once, the light brightness gradually increases. When you release it, the light brightness stops at the brightness corresponding to the moment of release. If you press and hold for more than 3 seconds, the light brightness will not change after reaching the maximum brightness; The brightness of the light gradually decreases. When it is released, the light brightness stops at the brightness corresponding to the moment of release. If you press and hold for more than 3 seconds, the light brightness will not change after reaching the minimum brightness. This cycle.

△ Click and touch can be used at any time without any interference or restriction.

◆ without memory slowly fades in brightness LED touch stepless dimming the brightness in memory without projections projecting out of the dark LED based touch stepless dimming function on, click touch during lamp on and off, by Make the light slowly and smoothly transition from a low brightness to the initial brightness of the light. When you click and touch the light to turn it off, the light is slowly and smoothly reduced from the current brightness until it is turned off, thereby achieving a visual buffer effect of slowly changing brightness, protecting the eyes and The effect of vision.

◆ with the luminance memory slowly fades LED touch stepless dimming the brightness in the memory without the slowly fades LED touch memory function increases luminance and stepless dimming based on the function. That is, when the power supply is constantly powered, the brightness when the light is turned off every time the touch is clicked will be memorized, and the brightness will be used as the initial brightness when the light is turned on next time. In the case of power failure, the first click after the power is turned on to turn on the light, the initial brightness is fixed at 50% of the full brightness .

◆ LED three-segment touch dimming function

△ The lamp is off when it is initially powered on.

△ Each time you click and touch, the brightness of the light changes cyclically in the order of low brightness → medium brightness → high brightness → off .

Adjustment of sensitivity

The larger the capacitance value, the higher the sensitivity; the smaller the capacitance value, the lower the sensitivity.

See the table below to adjust touch sensitivity:

Media type	Capacitance type	Capacitance parameters
Touch the metal case directly	Polyester capacitor	333	0.033uF / 25V
Acrylic glass up to 3mm	Polyester capacitor	103	0.01uF / 25V
3-6mm acrylic glass	Polyester capacitor	203	0.02uF / 25V
6-10mm acrylic glass	Polyester capacitor	473	0.047uF / 25V



Note: When the constant voltage dimmer output is connected to the LED , the upper limit current resistor must be connected in series!

Calculation method of current limiting resistance: R =  ( Vi-Vled ) / Io

Among them, Vi is the input voltage , Vled is the total voltage drop of all LED lamps, and Io is the total current of the lamp string. The floating range of Vi and Vled should be considered in the calculation . Vi is usually too large when the battery is fully charged . After the LED heats up, Vled will drop! Prevent overcurrent from burning the module or lamp beads.
