Serial Monitor ไม่แสดงผล
ตามหัวข้อเลยค่ะ ไม่ยอมแสดงผลให้ค่ะ
void setup() {
// put your setup code here, to run once:
Serial.begin(9600);
}
void loop() {
// put your main code here, to run repeatedly:
Serial.println ();
Serial.println ("Hello world");
}
ส่วนอันนี้ Code ค่ะ

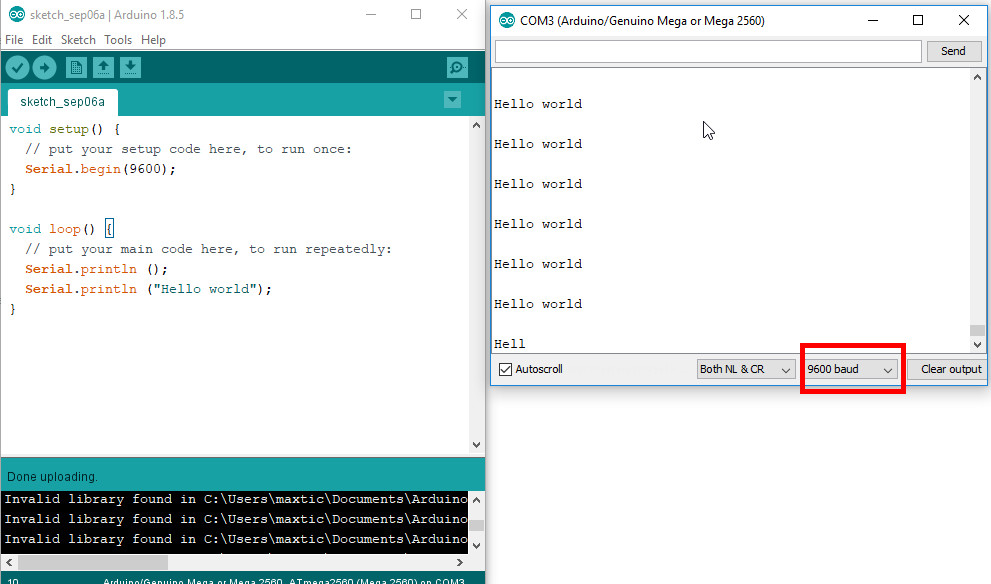

โคดที่ให้มาทำงานได้ถูกต้อง แสดงผลได้ครับ
เช็คดังนี้
1. เลือก บอร์ด และ Comport ถุกต้องแล้ว
2. เลือก boardrate ให้ถูกต้อง ในโปรแกรมตั้งเป็น 9600 ใน Serial Monitor ก็ต้องตั้งให้ตรงกันด้วยครับ
#include <ESP8266WiFi.h>
#include <WiFiClient.h>
//ESP Web Server Library to host a web page
#include <ESP8266WebServer.h>
//---------------------------------------------------------------
//Our HTML webpage contents in program memory
const char MAIN_page[] PROGMEM = R"=====(
<!DOCTYPE html>
<html>
<head>
<title> สั่งเปิดปิดไฟผ่าน WiFi </title>
</head>
<body>
<body style = " background : url(http://2.bp.blogspot.com/-2ZYTRs54H0I/Uq6KBsaY75I/AAAAAAAAANE/yV9ASQSSM3E/s1600/Vanda.jpg); background-repeat:no-repeat;background-size:100% 100%; height:800px;background-attachment:fixed">
<br><center><b><font face = "Algerian"><font size = 100000><font color = "#FF0000" > Turn on and off the home LED with WiFi </font> </b> </center>
<i><b><FONT SIZE = 500><font color = "#AF0DC4" ><marquee scrolldelay="100" direction="Right"><FONT FACE = "TH KoHo">เปิด - ปิดไฟ LED ในบ้านด้วย WiFi</marquee></FONT></b></i>
<br>
<br><center><font face = "MV Boli"><font size = 100><font color = #FFFFFF >CH1 <a href="ledOn1"> <button><font face = "TH KoHo"><font size = 200><font color = "#21E034" > On </button></a><a href="ledOff1"><font face = "TH KoHo"><font size = 200><font color = "#FF0000" > OFF </button></a></font></center>
<center><font face = "MV Boli"><font size = 100><font color = #FFFFFF >CH2 <a href="ledOn2"> <button><font face = "TH KoHo"><font size = 200><font color = "#21E034" > On </button></a><a href="ledOff2"><button><font face = "TH KoHo"><font size = 200><font color = "#FF0000" > OFF </button></a></font></center>
<center><font face = "MV Boli"><font size = 100><font color = #FFFFFF >CH3 <a href="ledOn3"> <button><font face = "TH KoHo"><font size = 200><font color = "#21E034" > On </button></a><a href="ledOff3"><button><font face = "TH KoHo"><font size = 200><font color = "#FF0000" > OFF </button></a></font></center>
<center><img src="http://i245.photobucket.com/albums/gg69/goong_4866/welcome/po2-1.gif" width="350" height="150" ></center>
<marquee scrolldelay="100" direction="left"><img src="https://f.ptcdn.info/604/018/000/1399347104-kapook4240-o.gif" width="110" height="150" ></marquee>
</body>
</html>
)=====";
//---------------------------------------------------------------
//On board LED Connected to GPIO2
#define LED1 1
#define LED2 3
#define LED3 15
//SSID and Password of your WiFi router
const char* ssid = " vivo 1606 Kanokkorn ";
const char* password = "21052544";
//Declare a global object variable from the ESP8266WebServer class.
ESP8266WebServer server(80); //Server on port 80
//===============================================================
// This routine is executed when you open its IP in browser
//===============================================================
void handleRoot() {
Serial.println("You called root page");
String s = MAIN_page; //Read HTML contents
server.send(200, "text/html", s); //Send web page
}
void handleLEDon1() {
Serial.println("LED on page");
digitalWrite(LED1,LOW); //LED is connected in reverse
server.send(200, "text/html", "LED is ON"); //Send ADC value only to client ajax request
}
void handleLEDoff1() {
Serial.println("LED off page");
digitalWrite(LED1,HIGH); //LED off
server.send(200, "text/html", "LED is OFF"); //Send ADC value only to client ajax request
}
void handleLEDon2() {
Serial.println("LED on page");
digitalWrite(LED2,LOW); //LED is connected in reverse
server.send(200, "text/html", "LED is ON");
}
void handleLEDoff2() {
Serial.println("LED off page");
digitalWrite(LED2,HIGH); //LED off
server.send(200, "text/html", "LED is OFF");
}
void handleLEDon3() {
Serial.println("LED on page");
digitalWrite(LED3,LOW); //LED is connected in reverse
server.send(200, "text/html", "LED is ON");
}
void handleLEDoff3() {
Serial.println("LED off page");
digitalWrite(LED3,HIGH); //LED off
server.send(200, "text/html", "LED is OFF");
}
//==============================================================
// SETUP
//==============================================================
void setup(void){
Serial.begin(115200);
WiFi.begin(ssid, password); //Connect to your WiFi router
Serial.println("");
//Onboard LED port Direction output
pinMode(LED1,OUTPUT);
pinMode(LED2,OUTPUT);
pinMode(LED3,OUTPUT);
//Power on LED state off
digitalWrite(LED3,HIGH);
digitalWrite(LED2,HIGH);
digitalWrite(LED1,HIGH);
// Wait for connection
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
//If connection successful show IP address in serial monitor
Serial.println("");
Serial.print("Connected to ");
Serial.println(ssid);
Serial.print("IP address: ");
Serial.println(WiFi.localIP()); //IP address assigned to your ESP
server.on("/", handleRoot); //Which routine to handle at root location. This is display page
server.on("/ledOn1", handleLEDon1);
server.on("/ledOff1", handleLEDoff1);
server.on("/ledOn2", handleLEDon2);
server.on("/ledOff2", handleLEDoff2);
server.on("/ledOn3", handleLEDon3);
server.on("/ledOff3", handleLEDoff3);
server.begin(); //Start server
Serial.println("HTTP server started");
}
//==============================================================
// LOOP
//==============================================================
void loop(void){
server.handleClient(); //Handle client requests
}
